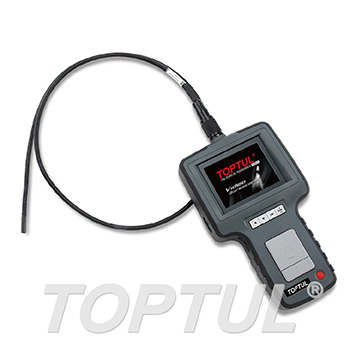

Portable Video Borescope
Code: VARF3901
Description
Feature:
– Multi-function keys selection
– Working temperature of – 20°C to + 60°C
– The probe can easily fits through the spark plug hole of engine
– Water, oil, dust and scratch resistant probes (IP67)
– Obedient probe that retains required shape
– 2.0 times digital zoom function
– Horizontal picture reflection function
– Live video and photo replay on TFT display
– Snapshot and Video recording to SD card
– Multi lingual menu

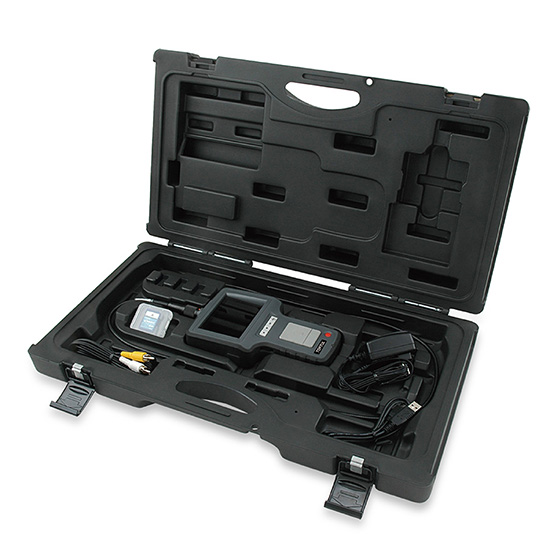

Contents:
– Operation panel
– 1m semi-rigid spiral shaft camera probe
– SD card
– USB data cable
– AV cable
– AC Adapter
Application:
– Automotive, aircraft, marine, locksmiths, electricians, law enforcement, mechanics, exterminator plumbers, welders, carpenters, HVAC repair & inspect all kinds of hard-to-reach areas.
– Made in TAIWAN
| ITEM NO. | Probe Diameter (mm) |
Probe Length (M) |
Probe Type |
Viewing Direction |
Types of Plug Adapter (power charger) |
||
| VARF3901 | Ø3.9 | 1 | Semi-Rigid | Forward View | A. (US) |
E. (EU) |
Z. (AU/NZ) |
| Main System (Hand Held Unit) | |
| Dimension | 117.5 x 207 x 37mm |
| Display | 3.5″ (TFT LCD QVGA) |
| Video Out Format | NTSC & PAL |
| Video Out Interface | AV Out |
| Still Image Storage Format | JPEG (640×480 pixels) |
| Frame Rate | ~30fps |
| Compression Format | MPEG4 (320×240 pixels) |
| Recording Medium | SD card up |
| Exposure | Automatic |
| White Balance | Fix |
| S / N Ratio | 42dB or more |
| Power | Battery Rechargeable Li-Polymer Battery 3.7V Power Supply AC 100-240V / 50-60Hz Power Consumption DC5.5 1.8A |
| Working Time | 4 hours |
| Recharge Time | 2 hours |
| Working Temperature | -20°C~60°C |
| Language | English / Danish / French / Spanish / Russian / Dutch / Polish / Italian / German / Portuguese / Japanese / Bulgarian / Traditional Chinese / Simplified Chinese / Turkish / Swedish / Finnish / Norwegian / Estonian / Lithuanian / Latvian / Hungarian / Czech / Slovak / Slovene / Romanian / Greek |
| Camera System and Insert Tube | |
| Camera Resolution | 325(H) x 250(V) = 81250 pixels |
| Image Sensor | CMOS |
| Housing | Stainless Steel |
| Field of View (Aperture Angle) | Horizontal field angle 46° Vertical field angle 34° Diagonal field angle 56° |
| Focused Depth of Field | 1cm~6cm |
| Protection Class | IP67 |
| Resistance | DO NOT immerse the insert tube deeper than 1M depth and over 30 minutes.(water) DO NOT immerse the insert tube deeper than 6cm and over 10 minutes besides water.(such as lubricant oil, gasoline and etc.) |
| Working Temperature | 0°C~55°C |
| Light Source | White LED |
| Bend Radius | min. 15mm |
