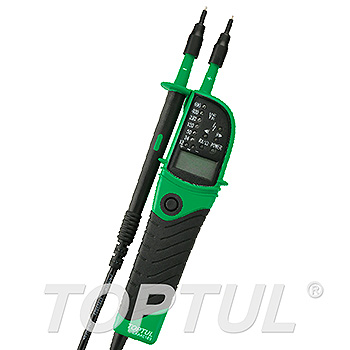

Multifunctional Voltage Tester with Digital Display

Code: EAAA0169


Category


Share
Description

– AC and DC voltage tests up to 690V with LED and LCD display
– Continuity tester with acoustic and optical display
– Phase rotation indicator for 3-phase systems
– Polarity detection positive / negative
– High voltage indication (≥ 50V AC/DC)
– Built-in flashlight for testing in dark places
– Dust and water protection to IP 64
– Powered by 2 x AAA batteries (not included)
– Made in TAIWAN

ITEM NO.
EAAA0169
SPECIFICATIONS
Voltage Range 12 ~ 690V AC / DC
Frequency Range 0 – 70 Hz (AC)
LED Voltage Indication 12 / 24 / 50 / 120 / 230 / 400 / 690V
LCD Resolution 7 ~ 690V
Peak Current <3.5mA (at 690V)
Continuity Test 0 ~ 550kΩ
Operating Temperature -10 ~ 55°C
Storage Temperature -20 ~ 60°C
Humidity Up to 85% non-condensing
Operating Altitude Altitude up to 2000m
Testing Standard EN 61243-3 / IEC 61243-3
EN 61010-1 / IEC 61010-1
Measurement Category CAT III 690V / CAT IV 600V
Pollution Degree 2
Power AAA batteries x 2 pcs (not included)
